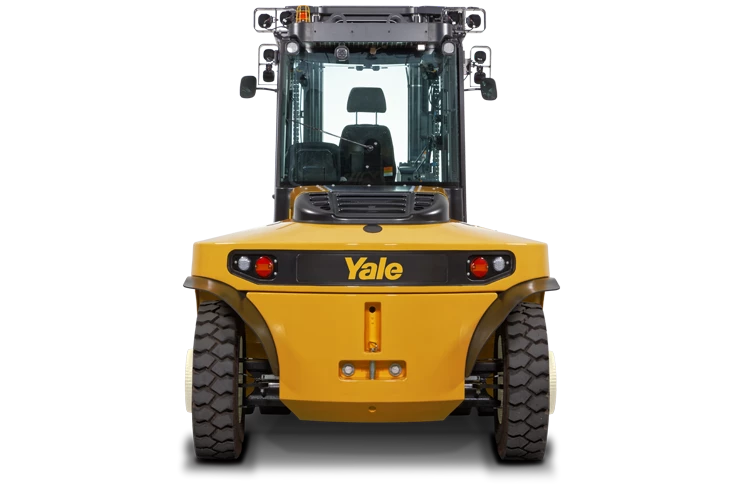

4 Wheel Electric Forklift Truck Pneumatic Tire
Integrated li-ion high-capacity electric forklift
- Models
- ERP230-280DF
- Capacity
- 10433-12700kg
High-capacity electric forklift that offers ICE-like performance for indoor and outdoor applications needing a zero-emissions solution. Available with a 23,000-28,000-pound load capacity, this 4-wheel pneumatic tire, electric counterbalanced forklift is ideal solution for both indoor and outdoor applications across many different industries driving toward decarbonization.
- Integrated lithium-ion battery power
- Operator comfort
- Low cost of ownership
- Excellent visibility
High-capacity electric solution
Integrated lithium-ion battery power
Operator comfort
Low Cost of Ownership
Excellent Visibility
Right-sized with an optimal 350V system providing ICE-like performance without the additional costs and complexity for the higher voltage systems in competitive offerings. The integrated lithium-ion battery solution produces zero tailpipe emissions and allows for fast charging times and opportunity charging during break times.
The ERP-DF series is designed to keep operators comfortable and focused, for lasting productivity.
- Ergonomically designed with largest cabin entry area in the industry
- Full-color 7-inch screen displaying performance data at operators finger tips
- Exclusive lateral sliding seat, adjustable steering column and foot pedal
- Accutouch mini-lever e-hydraulic controls accompany the adjustable armrest for low-effort, fingertip control of hydraulic functions
Minimize service time, maintenance costs and keep truck running with quick access to key components and affordable replacement parts.
- Tilting cab provides quick and easy access to components for routine maintenance
- Removable panels provide convenient access to high-voltage components
- Industry leading ingress protection of the batteries, cables and wires able to withstand heavy-duty environments.
- Lithium-ion batteries provide zero battery maintenance and fast charging times
- Cab equipped with armored glass top window, curved, scratch-resistant front and rear windshields and steel-framed doors with tempered glass provide operators with excellent all-around visibility
- Sloping counterweight and integrated battery design enhances visibility of steer tires
- Open carriage design with mast chains mounted on the outside of the mast, low cowl and increased space between mast channels enable enhances forward view of the fork tips at travel and load height
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Battery Capacity | Overall Width | Weight | Engine |
|---|---|---|---|---|---|---|---|---|
| ERP230DF | 10433kg | 24mm | 147mm | 162mm | 350 / (192 / 384 )(V/Ah) | 98mm | 14242kg | Electric |
| ERP250DF | 11340kg | 24mm | 147mm | 162mm | 350 / (192 / 384 )(V/Ah) | 98mm | 14792kg | Electric |
| ERP280DF | 12700kg | 24mm | 147mm | 162mm | 350 / (192 / 384 )(V/Ah) | 98mm | 15592kg | Electric |
Support throughout the lift truck life cycle
Knowledgeable, reliable dealers make all the difference
When it comes to collaborating with a lift truck dealer, you can’t settle – you need dealers wholly focused on your success. When you purchase equipment or technology solutions from Yale Lift Truck Technologies, you gain access to our independent dealer network. “Independent” means our dealers are not constrained by factory ownership or corporate red tape.
Our dealers are entirely focused on fulfilling your needs
- A seamless experience, from order to factory to ongoing support
- Effective recommendations and responsive support, from parts, maintenance and
emergency services to fleet management, rental trucks and operator training. - Expertise and guidance on special features and allied products and services for your
warehouse, like racking, guarding and safety equipment. - Assistance with financing options.
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Yale supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
Right Truck, Right Now
This model is in-stock now
Time is of the essence when you need a new lift truck, so our dealers keep essential Yale® models like this on-site, ready right now.
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
Yale Power Suite
Unlock the True Power of Your Operation
Yale Power Suite has the industry’s widest range of power sources from a variety of brands, so you get the best solution available to maximize your operations. Our team has deep industry knowledge about forklift power sources to evaluate your application and recommend the power source that gives you the best return on your investment.
