Platform Double Stacker
Designed for use over medium/short distances and loading/unloading
- Models
- MP20XD
- Capacity
- 2000kg

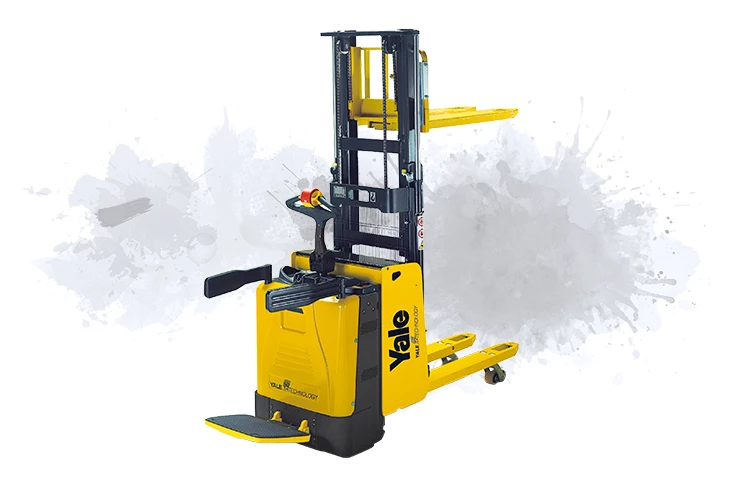

Ride-on platform double stacker for productive horizontal transportation and vehicle loading and offloading.
- Large cushioned operator platform
- Ergonomic tiller head
- Four pre-set performance settings
- Fly by wire steering
- Low maintenance
The three models in the MPX series have been designed to match intensive, medium and light duty operations.
Large cushioned operator platform
Ergonomic tiller head
Four pre-set performance settings
Fly by wire steering
Low maintenance
A large cushioned operator platform with non-slip surface allows the operator to determine the most comfortable driving position throughout the shift. The cushioned platform also performs am operator presence switch function, preventing the truck from operating with no operator.
Ergonomic tiller head with angled hand grips and responsive low effort ‘butterfly’ controls reduce stress and fatigue on the operator’s wrist, thumb and fingers. Dual lift and lower controls are positioned for left or right hand use.
Four pre-set performance levels can be selected to suit the application needs or the operator’s preference.
Minimum effort is required to manoeuvre the truck, turning rotation ratio of the tiller arm to the drive wheel is 75: 90 degrees, so the operator can work with less effort and arm movement, reducing operator fatigue and increasing productivity.
AC-DC MOSFET Combi Electronic Control Technology provides energy efficient performance and low maintenance with 1000 hour service intervals.
| Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight |
|---|---|---|---|---|---|
| MP20XD (stand-on) | 2000 (1000 + 1000)kg | 2100mm | 3213 / 3062mm | 24V / 300Ah(V/Ah) | 1081kg |
| MP20XD Fixed (BOB) (stand-on) | 2000 (1000 + 1000)kg | 2100mm | 3327 / 3176mm | 24V / 300Ah(V/Ah) | 1126kg |
| MP20XD Fixed (BIGA) (stand-on) | 2000 (1000 + 1000)kg | 2100mm | 3288 / 3137mm | 24V / 300Ah(V/Ah) | 1138kg |
| MP20XD (pedestrian) | 2000 (1000 + 1000)kg | 2100mm | 2775 / 2624mm | 24V / 300Ah(V/Ah) | 1081kg |
