Performance to new heights

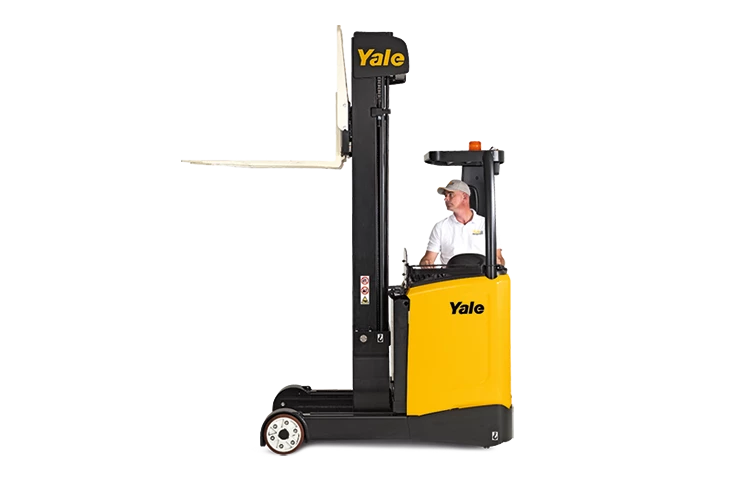

Seated reach truck with moving mast
- Models
- MR14-16 961
- Capacity
- 1400-1600kg
The Yale® moving mast reach truck is a versatile solution to help your operation reach higher with greater efficiency. There are two models, each available in three different battery compartment sizes to meet the needs of your application, along with numerous standard and optional features.
- High productivity
- Precise control
- Operator comfort
High performance for medium to heavy duty applications
The MR series is designed to keep up in your operation through long travel distances and high storage locations.
- Maximum travel speeds of 11 km/h to power through longer hauls
- Heavy-duty mast design provides high residual capacities and stable load handling
- Simultaneous lift and reach functionality saves time during pallet retrieval and put-away
- Adjustable speed reduction in cornering and creep speed allows operators to precisely position the truck for optimum performance at close range
Whether working storage locations at great height or navigating tight, efficient warehouse layouts, the MR series equips operators for maximum control and productivity.

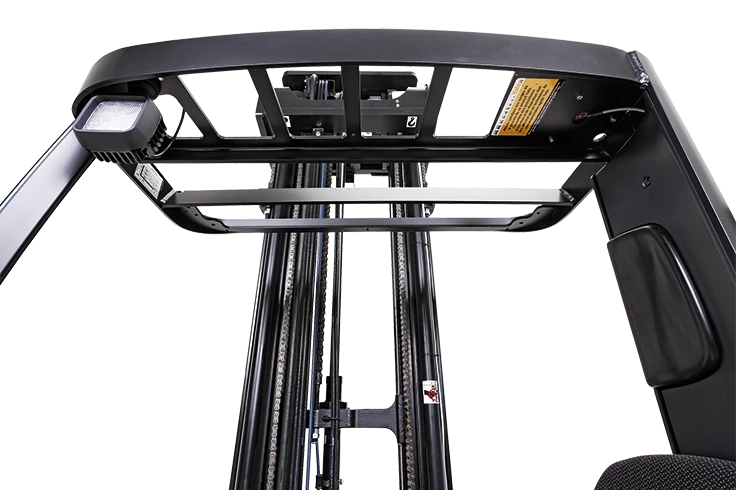

- High visibility mast saves operators from constantly adjusting their line of sight
- Standard Accutouch mini-lever module with built-in control maximizes operator familiarity, while additional functions are integrated into the armrest
- Optional 360-degree steering allows for greater maneuverability and more accurate positioning at the rack face
Designed around the needs of the operator so they can be comfortable as possible.

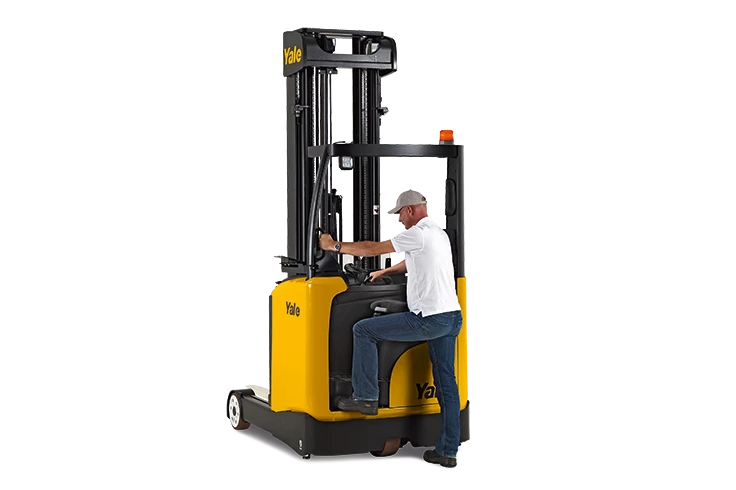

- Easy access to the operator compartment with a low, wide step, integrated grab handles, and adjustable steering column

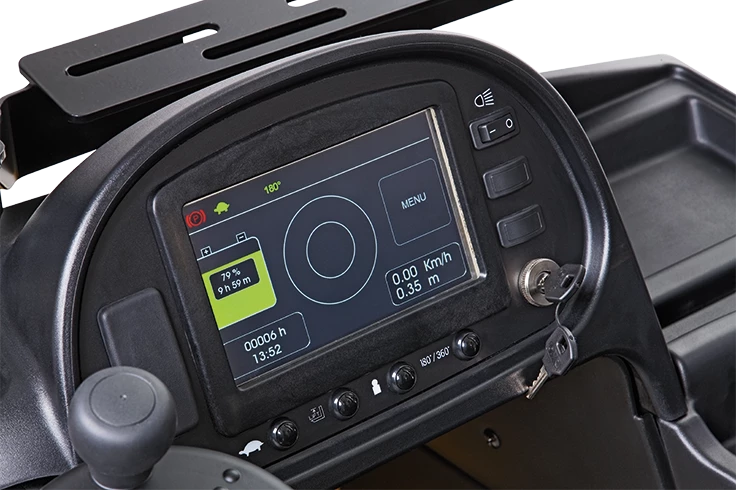

- Ergonomic controls are located on the easy-to-read display
- Optional cold storage package available for environments down to -30°C
| Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight |
|---|---|---|---|---|---|
| MR14 961 | 1400kg | 10063mm | 2718 / 2764mm | 48V / 465-775Ah(V/Ah) | 3112kg |
| MR16 961 | 1600kg | 10063mm | 2731 / 2767mm | 48V / 465-775Ah(V/Ah) | 3162kg |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
Yale Power Suite
Unlock the True Power of Your Operation
Yale Power Suite has the industry’s widest range of power sources from a variety of brands, so you get the best solution available to maximize your operations. Our team has deep industry knowledge about forklift power sources to evaluate your application and recommend the power source that gives you the best return on your investment.
