Rider Low Lift Pallet Truck
Award winning ergonomics
- Models
- MP20-25T
- Capacity
- 2000-2500kg

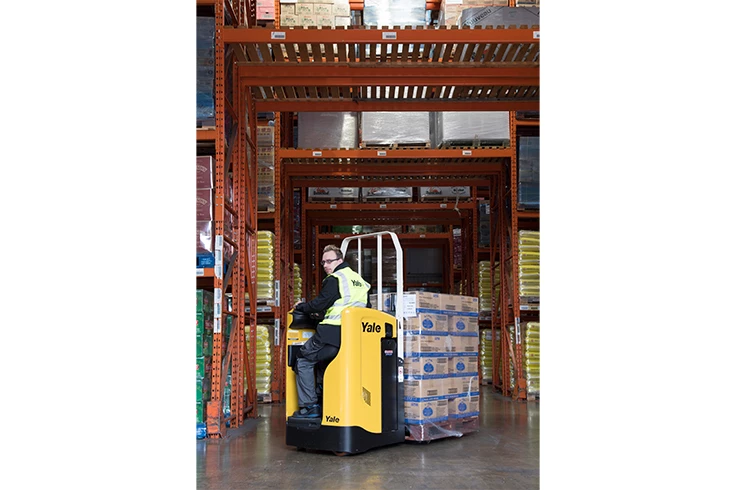

The sit/lean/stand ride-on pallet truck for more productive transportation
- Variable seat position for seated, leaned or standing operation
- Ergonomic Control
- AC Technology
- Excellent Productivity

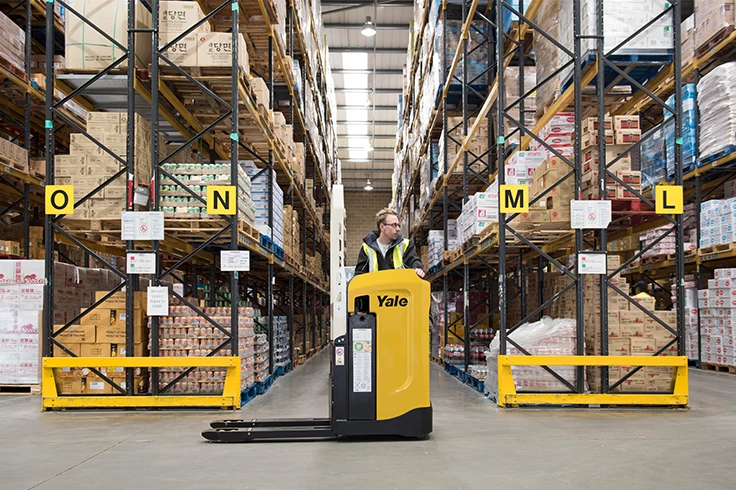

The MPT series narrow chassis width enables the operator to position, load and unload pallets in the most confined spaces and can even turn around in the back of a truck or container.
Ergonomically designed seat
Control
Ergonomic Controls
AC Technology
Excellent Productivity
A contoured polyurethane fully vertical adjustable cushion seat permits seated, leaning and standing operation/support for the operator to relieve fatigue over extended travel runs/shift times.
The new generation high frequency COMBI controller is to regulate both traction and pump operation. Automatic speed reduction when cornering is activated via the controller and regenerative braking as well as anti-rollback start up on an incline provide additional energy efficiency.
The electronic steering requires minimum effort and allows rapid manoeuvring. The large dimensioned, low effort butterfly button controls direction of travel and speed as well as opening and closing the electromagnetic brake.
The AC motor delivers fast travel speeds in the laden/unladen condition, high start-up torque and acceleration as well as efficient running. The us of AC motor technology eliminates forward and reverse contactors.
The controller can be adjusted to forward and reverse travel speeds, reverse current braking, release braking, lift and lowering speeds and deceleration braking. The operator and application performance can be matched to ensure maximum productivity.
| Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight |
|---|---|---|---|---|---|
| MP20T | 2000kg | 120mm | 2554 / 2465mm | 24V / 465Ah(V/Ah) | 1010kg |
| MP25T | 2500kg | 120mm | 2554 / 2465mm | 24V / 465Ah(V/Ah) | 1010kg |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
Yale Power Suite
Unlock the True Power of Your Operation
Yale Power Suite has the industry’s widest range of power sources from a variety of brands, so you get the best solution available to maximize your operations. Our team has deep industry knowledge about forklift power sources to evaluate your application and recommend the power source that gives you the best return on your investment.
