HIGH CAPACITY
HIGH CAPACITY LIFTING UP TO 16 TONNES
- Models

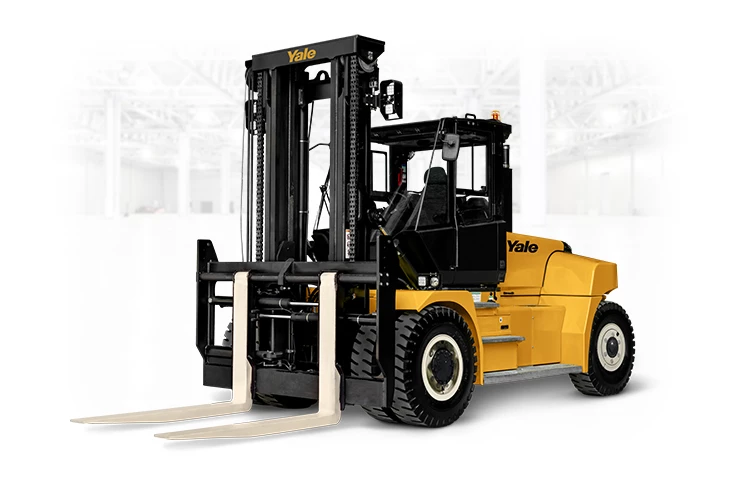

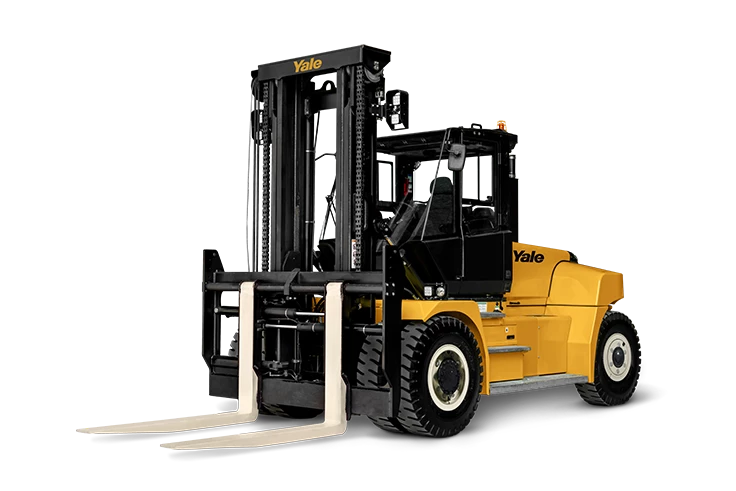

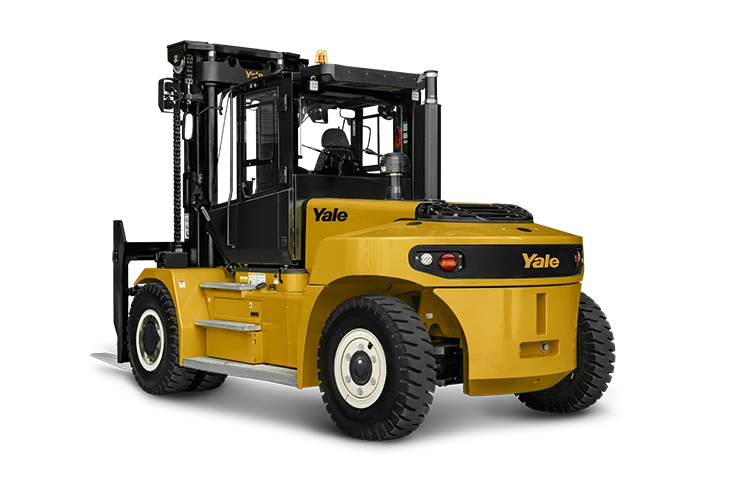

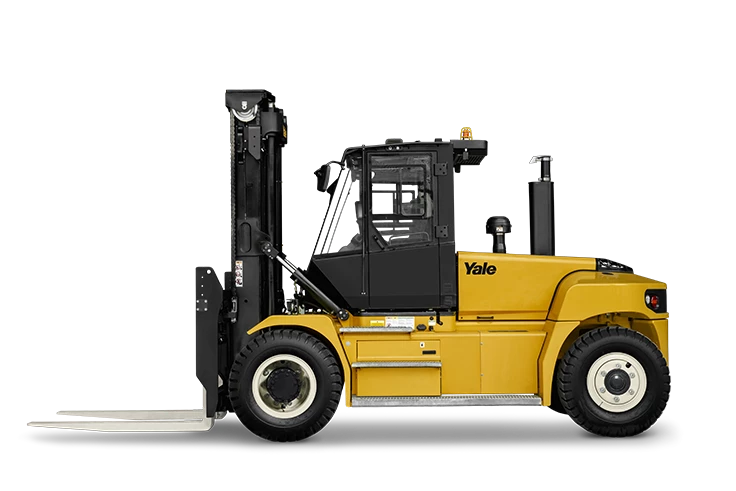

- GDP100-160DFEF
- Capacity
- 10000-16000kg
The GDP100-160DFEF delivers a combination of ergonomics, power and durability in a robust platform designed for the most demanding duty cycles in logistics operations in various industry applications.
- Efficient performance
- Operator comfort
- Maximum productivity
- Service and dependability
All-day productivity in logistics applications
Efficient performance
Operator comfort
ECO-eLo fuel efficiency
Stage IV diesel engines
- In logistics applications, you need a lift truck with the power to get through the difficult challenges while avoiding high running costs.
- The Tier 4 Final after-treatment package offers cooled Exhaust Gas Recirculation (EGR), a Selective Catalytic Reduction system (SCR) for NOx reduction, a Diesel Oxidation Catalyst (DOC) for Particulate Matter (PM)
- For easy access and heat rejection, both after-treatment units are packed in one box and conveniently positioned on the outside of the truck.
The DF/EF series is designed to keep operators comfortable and focused, for lasting productivity.
- Low step heights for easy entry and exit
- Low noise thanks to vibration dampeners for the powertrain
- High, open carriage and mast sections offer unobstructed view of fork tips
- Optional foot directional control pedal for quicker, smoother control of travel direction
- Optional Accutouch mini-lever e-hydraulic controls accompany the adjustable armrest for low-effort, fingertip control of hydraulic functions and horn
The DF/EF series delivers the performance you need to meet the highest performance benchmarks in your scheduled duty cycles.
- Automatic throttle up provides automatic response to lift inputs from the operator when the lift lever is activated, with a controlled rev-up to keep the engine in the most efficient operating range
- Maximum travel speed of up to 30 km/hr (subject to model)
- Fast lifting and lowering speeds
- The DF/EF series offers the build quality, smart features, and serviceability to keep performing, shift after shift.
- Sideways tilting cab offers unobstructed access to the engine and key components
- CAN bus connections help to reduce fault identification time
- Longer service intervals increase uptime and reduce service costs.
- Sturdy mast design
- Engine protection system monitors coolant, air intake temperatures and oil pressure
- Transmission system monitors pressure, temperature and forward/reverse lockout during changes in direction
- Efficient hydraulic system does not require engine speeds to run as high to extend component life
- Quad-cooler radiator design channels only cool air, not preheated air, across cores
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight |
|---|---|---|---|---|---|---|
| GDP140EF | 10500kg | 600mm | 4925mm | 4107mm | 2490mm | 14470kg |
| GDP120DF | 13500kg | 600mm | 4925mm | 4107mm | 2490mm | 15882kg |
| GDP140EF | 14500kg | 600mm | 4910mm | 4573mm | 2541mm | 18483kg |
| GDP160EF(S)12 | 16500kg | 1200mm | 4494mm | 4889mm | 2541mm | 23461kg |
| GDP160EF | 16500kg | 600mm | 4910mm | 4573mm | 2541mm | 19459kg |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
