RELIABLE AND COST-EFFECTIVE
DEPENDABLE WITH ENHANCED PRODUCTIVITY
- Models

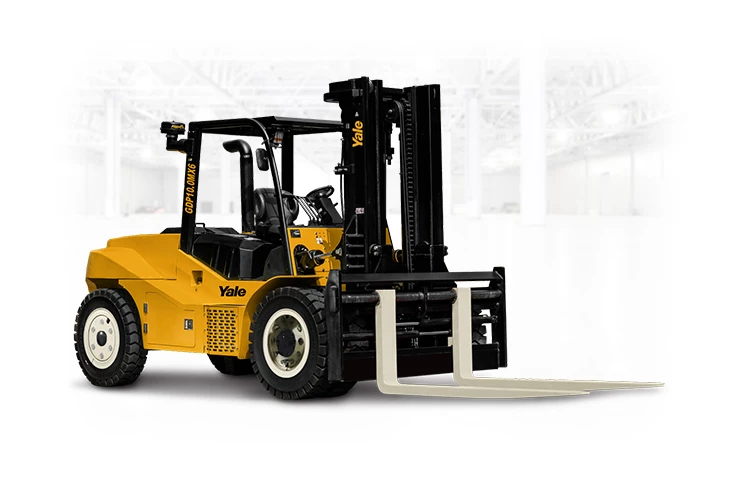

- GDP8.0-10.0MX6
- Capacity
- 8000-10000kg

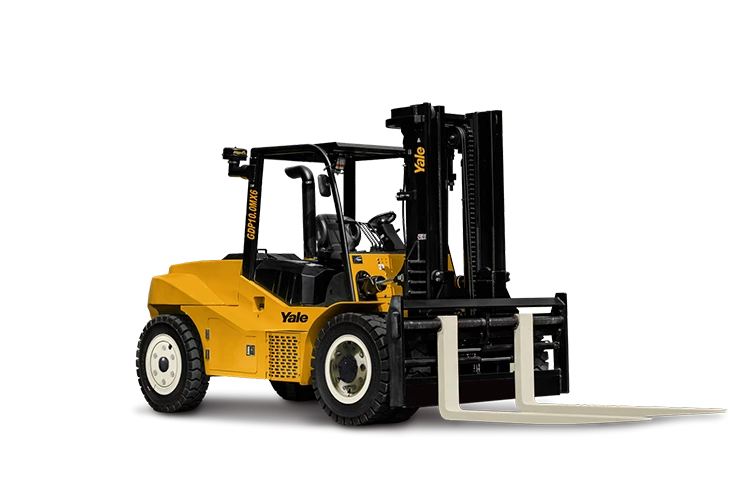

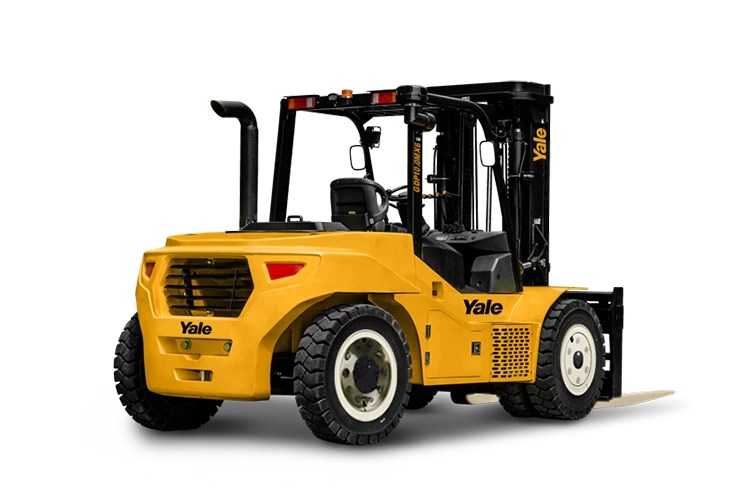

The Yale MX Series was engineered for operations looking for a reliable, cost-effective solution to get the job done - all backed by the Yale name. This low maintenance truck prioritizes operator comfort and enhances productivity while minimizing operational costs. The MX Series can be easily serviced and maintained in the field with limited tools due to the low complexity of the drive and lift systems.
- Ergonomics
- Low cost of ownership
- Service and dependability
COST-EFFECTIVE SOLUTION TO GET THE JOB DONE
Dependability designed for less demanding applications.
Safety and stability
Operator comfort
Easy maintenance
Reliability and exchangeability
- Wide view mast
- High strength overhead guard
- Muffler and engine protective system
- Low centre of gravity
The ergonomically designed operator compartment, with a familiar automotive layout, means that drivers will be able to work comfortably.
- 3.5” Colour LCD
- Large foot room on floor plate
- Hand parking brake lever with button reduces fatigue in operation
- Small diameter steering wheel with adjustable steering column
Due to the simplicity of the components and specifications, servicing can be carried out quickly and easily.
- Limited computer-based diagnostics required
- Large access area for service and repairs
- Simple components
- One piece welded overhead guard
- Tier 3 or Stage V Cummins 3.8L engine provides sufficient power for continued operation and optimal reliability
- Exchangeable components across models
| Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight |
|---|---|---|---|---|---|---|
| GDP8.0MX6 | 8000kg | 600mm | 3047mm | 3900mm | 2164mm | 13770kg |
| GDP10.0MX6 | 10000kg | 600mm | 3047mm | 3900mm | 2164mm | 12720kg |
Yale Vision telemetry
Complete fleet visibility and control
Yale Vision provides real-time fleet monitoring for more informed decisions. The solution offers easy-to-use dashboards and analytics to manage cost, optimise productivity and protect assets.
