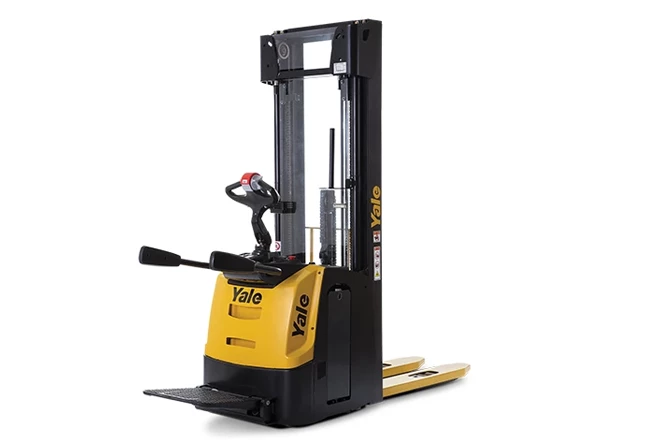

Platform High Lift Stacker
The manoeuvrability of a stacker with the travel speed of a ride-on
- Models
- MS12-20X
- Capacity
- 1200-2000kg
Dual purpose warehouse machines with folding platform for pedestrian and rider operation
- Ride-on or pedestrian operation
- Initial lift
- Ergonomic tiller head
- Powered assisted steering
- Adjustable pull rods

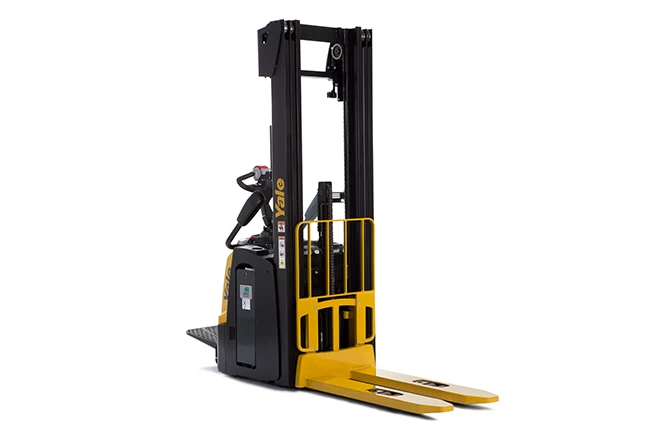

The MS12-20X platform stacker is ideal for double pallet handling and suitable for operation in short or long distance transfer applications and on ramps or gradients.
Ride-on or pedestrian operation
Initial lift
Ergonomic tiller head
Powered assisted steering
Adjustable pull rods

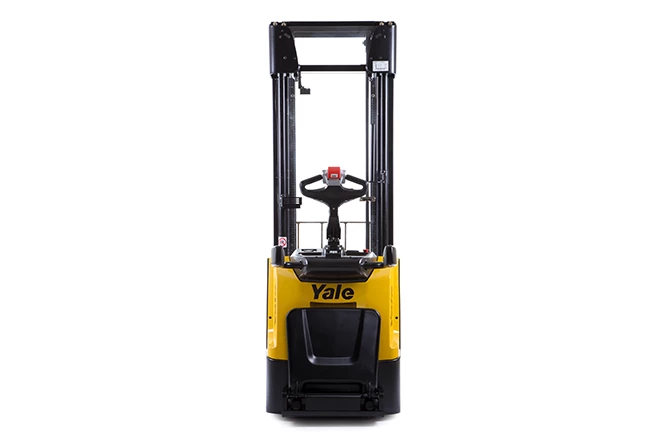

The large operator platform allows the operator to find their ideal driving position for maximum application flexibility. Foldable side arms are relative to the level of the platform providing the operator with maximum comfort and stability.

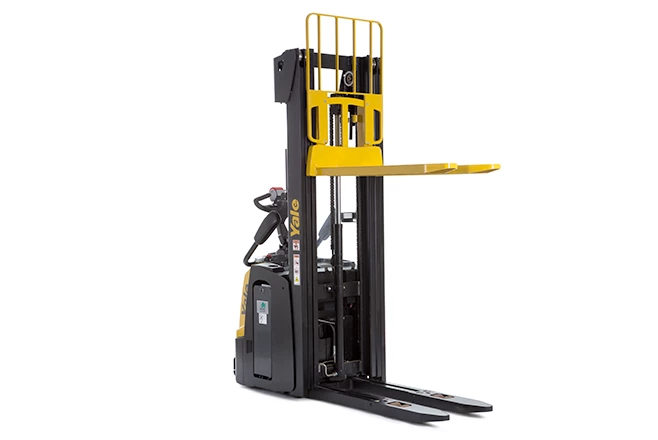

The initial lift increases the distance from the ground, allowing transfer on irregular surfaces, loading levels and ramps. Speed is automatically reduced with forks raised.

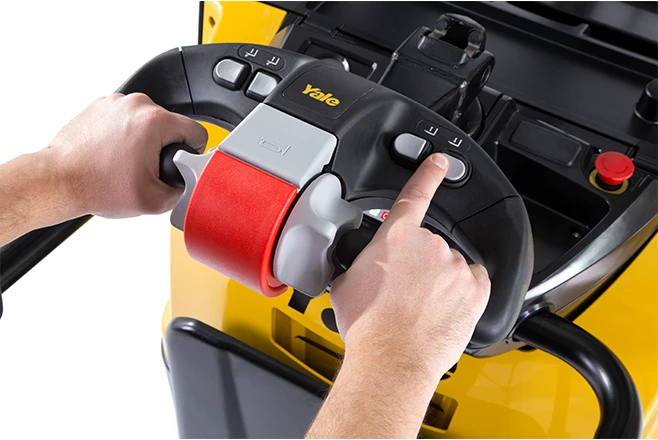

The tiller head and handle features an ergonomic shaped handle and integral hand guard. Large, low-effort, butterfly buttons control direction of travel, speed and the electromagnetic brake - all without the operator’s hand moving from the handle. Left hand buttons operate slow speeds for fine positioning, right hand buttons control proportional lifting and lowering, the horn is on top.
The electric motor completely eliminates steering effort, making the truck light and easy to steer in all working applications.
The adjust able pull rods give uniform lifting and lowering movement of the forks. The loading rollers are tandem with lubrication points and sealed bearings. The speed of the truck is automatically reduced when the load arms are raised.
| Model | Load Capacity | Lift Height | AST (wide / long) | Battery Capacity | Weight |
|---|---|---|---|---|---|
| MS12X (stand-on) | 1200kg | 3200mm | 2870 / 2836mm | 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) | 1100kg |
| MS12X IL (pedestrian) | 1200kg | 2800mm | 2524 / 2511mm | 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) | 1191kg |
| MS12X (pedestrian) | 1200kg | 3200mm | 2463 / 2429mm | 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) | 1100kg |
| MS12X IL (stand-on) | 1200kg | 2800mm | 2932 / 2919mm | 24V / 210-250Ah | Li-ion 24V / 200Ah(V/Ah) | 1191kg |
| MS14X IL (pedestrian) | 1400kg | 2800mm | 2524 / 2511mm | 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) | 1191kg |
| MS14X (stand-on) | 1400kg | 3200mm | 2870 / 2836mm | 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) | 1130kg |
| MS14X IL (stand-on) | 1400kg | 2800mm | 2932 / 2919mm | 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) | 1191kg |
| MS14X (pedestrian) | 1400kg | 3200mm | 2463 / 2429mm | 24V / 210-375Ah | Li-ion 24V / 200-300Ah(V/Ah) | 1130kg |
| MS16X IL (stand-on) | 1600kg | 2800mm | 2595 / 2582mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1267kg |
| MS16X SL (pedestrian) | 1600kg | 3200mm | 2619 / 2605mm | 24V / 315-375Ah (V/Ah) | 1523kg |
| MS16X IL (pedestrian) | 1600kg | 2800mm | 3002 / 2990mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1267kg |
| MS16X (pedestrian) | 1600kg | 3200mm | 2534 / 2500mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1240kg |
| MS16X (stand-on) | 1600kg | 3200mm | 2942 / 2908mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1240kg |
| MS16X SL (stand-on) | 1600kg | 3200mm | 3034 / 3020mm | 24V / 315-375Ah(V/Ah) | 1523kg |
| MS20X (stand-on) | 2000kg | 3000mm | 2534 / 2500mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1243kg |
| MS20X (pedestrian) | 2000kg | 3000mm | 2942 / 2908mm | 24V / 315-375Ah | Li-ion 24V / 300Ah(V/Ah) | 1243kg |
