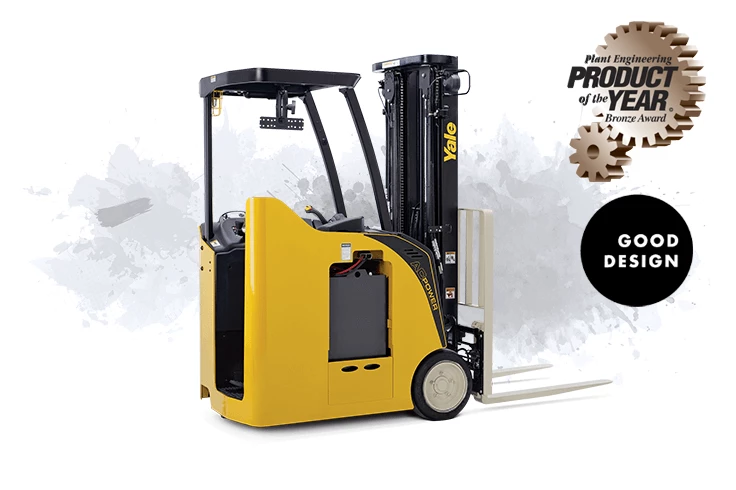

Award winner Yale Three-Wheel Stand up forklift
Stand up forklift | Provides optimal maneuverability while turning
Stand up forklift | 3 wheel forklift
Yale Three-Wheel Stand Up Lift Truck for dock and drive-in rack applications.
Stand-up forklift | Electric 3 wheel | Yale
Stand-up forklift by Yale

Efficient Three-Wheel Electric Forklift

Stand-up forklift for dock and drive-in rack applications

Models
ESC030-40AD
Capacity
3000-4000lbs

The three-wheel stand up forklift can help you move products in and out of tight spaces more efficiently and enhance operator productivity in the following applications: Dock-to-stock load transportation, Loading and unloading, Staging, Stock replenishment

  • Tight turning radius
  • Ergonomic features
  • Simplified service
Industry Sectors

- Retail Distribution
- Food Distribution
- Warehouse & 3PL
- Wholesale Distribution
- Retail & E-Commerce (DC/fulfillment)
- Health & Pharma
- Auto Parts Distribution
- Home Centers

Start a quote

Interested in more information on this lift truck? Our solutions team is available to discuss your specific application and how this product can meet your needs.

Start a quote

Stand Up to Operational Challenges

Keep shipments moving on time with increased forklift maneuverability and productivity

Tight turning radius

More SKUs and more racks means denser storage layouts and tighter spaces. You need forklifts specifically designed to whip in and out of those environments.

The Yale® three-wheel stand-up forklift has one of the tightest turning radiuses in the industry. As the truck turns, the inside motor slows, stops and reverses to minimize turn radius, making stacking in limited space and congested loading bays easier than ever.

  • Standard, dual independent AC drive motors with separate drive controllers provide optimal maneuverability while turning
  • Dual steer tires with hydraulically actuated rack and pinion steering axle for precise, reliable control
  • Ability to position loads even on an incline minimizes likelihood of product damage from unintended load contact



Ergonomic features

Labor costs can consume anywhere from 50-70% of your budget. The three-wheel stand up forklift is designed to get the most from labor expenditures by keeping operators sharp and on-task with state-of-the-art productivity and ergonomic features.

  • Multifunction control handle provides simultaneous control of travel and hydraulic functions
  • Yale® Smart Operator Sensing System includes no pedals, providing more useable floor space than leading competitors
  • Yale® Smart Ride Floor System eliminates up to 65% of shock and vibration transmitted to the operator
  • Easy access, low step height and spacious suspended floor help reduce operator fatigue
  • Optional Clear View™ mast offers up to 40% greater visibility than leading competitors



Simplified service

Out-of-service forklifts can disrupt work, cause operator downtime and lead to inefficiently structured fleets - accumulating excess costs and putting you behind schedule.

The three-wheel stand up forklift is engineered to be ready when you need it, with quality components, long-lasting performance and simple maintenance requirements to greatly reduce your chance of downtime and unplanned service.

  • Brushless, maintenance-free AC traction and hydraulic motors offer reduced maintenance requirements
  • Electrical system with CANbus communications reduces connections and complex wiring
  • Yale® Smart Operator Sensing System uses fewer moving parts than competitors, reducing the chance of component failure
  • Yale iSi Technology™ provides common diagnostics with other Yale® trucks for simpler service
Model Load Capacity Load Center Lift Height Turning Radius Battery Capacity Voltage Weight
ESC030AD 3000lbs 24in 283 50.7 36V / 775-1240Ah 6353
ESC035AD 3500lbs 24in 283 54.9 36V / 775-1240Ah 6445
ESC040AD 4000lbs 24in 283 57.4 36V / 775-1240Ah 6801
