Make multi-level order picking a breeze
Low level order picker
- Models
- MO55-80
- Capacity
- 5500-8000lbs

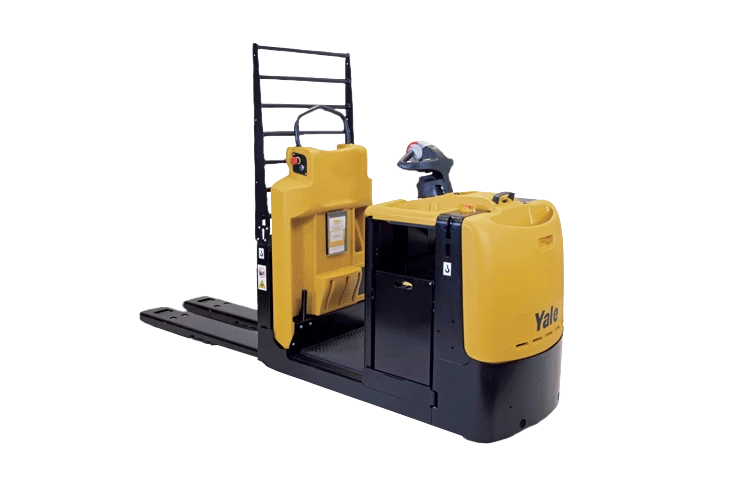

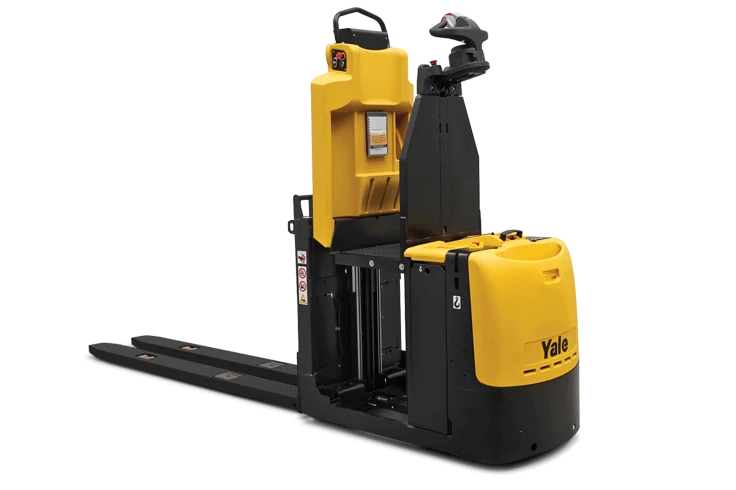

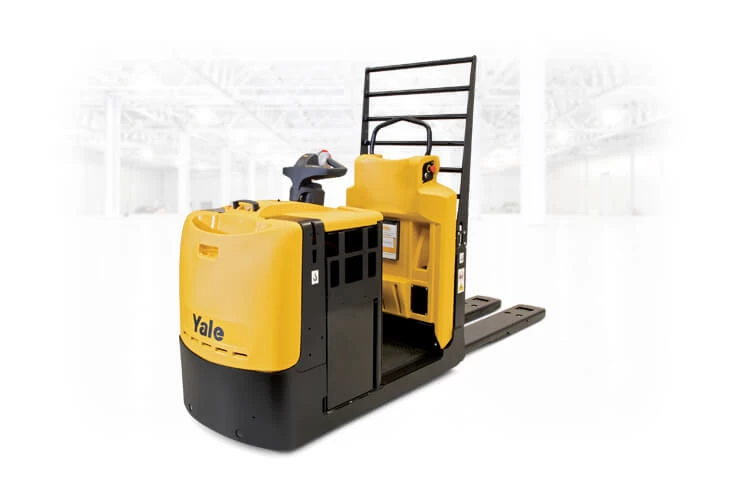

The Yale MO series of low level order pickers offers an efficient, cost-effective order picking solution that can enable more efficient slotting strategies for increased SKU capacity and decreased travel times.
- Ergonomic advantages
- Multi-level productivity
- Dependability
- Serviceability
Warehouse order picker to unlock innovating slotting strategies
Yale low level pickers offer a range of features designed to maximize operator productivity and reduce fatigue, all shift long.

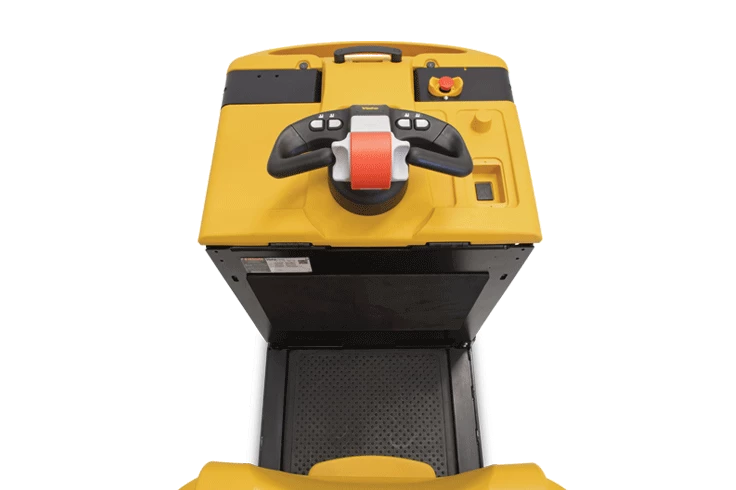

- Spacious operator compartment enables easy access and offers a backrest and plenty of space for a comfortable operating position
- Operator sensing floor mat completely covers the platform to allow onboard personnel to adjust stance
- Power steering uses electric, fly-by-wire technology to reduce steering effort by up to 90%
- Coast control uses slow-speed forward and reverse buttons to move to the next pick location while allowing the operator to walk alongside it, avoiding the need to re-mount the truck

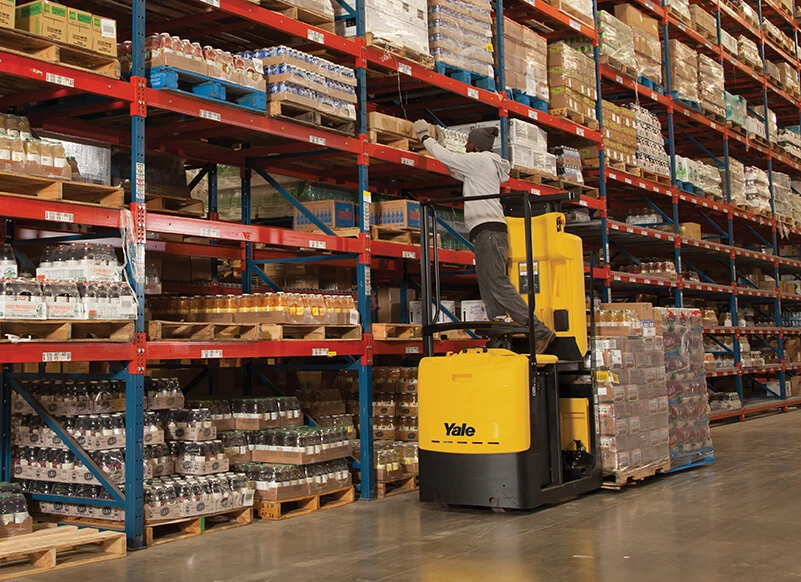

The MO series leverages the capabilities of a conventional pick vehicle with the speed and efficiency of a pallet truck, enabling the operator to easily access the 6-10 foot strike zone.
- Operations can take advantage of innovative slotting strategies to increase capacity and reduce travel time between picks.

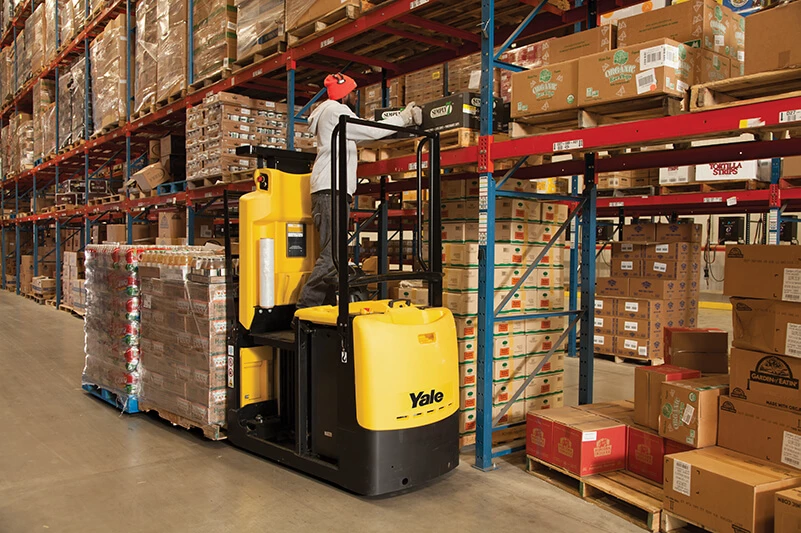

- Foot controlled lifting platform allows operators to focus on making picks, and offers easy access to second level storage locations
- Travel speed up to 8 mph help limit travel times between docking and picking
- Customizable performance settings such as acceleration, travel speed and braking to match application and operator needs
High-throughput operations do not have time for equipment downtime. The MO series is designed with key features to keep going strong, shift after shift.
- Double-sealed IP65 connectors offer long service life and reliable operation
- Robust fork design helps reduce stress and the heavy duty pull rod and load axle offer long-term reliability
- Industrial-grade frame design and sturdy wrap-around bumper plate protects internal components
- AC traction motor uses built-in thermal protection and is fully enclosed to protect from damage and debris
When service is necessary, the MO series is engineered with maintenance friendly features to expedite the process and get back to work.
- One-piece hood can be easily removed with just two screws for quick access to all components
- Single-point diagnostics help simplify service processes
- Vertical or lateral battery extraction to help operations tailor changing to their needs
| Model | Load Capacity | Lift Height | Platform Height | Battery Capacity Voltage | Weight |
|---|---|---|---|---|---|
| MO55 | 5500lbs | 4.7 | 38.6 | 34V | 2888 |
| MO60 | 6000lbs | 4.7 | 38.6 | 24V / 425-750Ah | 2888 |
| MO80 | 8000lbs | 4.7 | 38.6 | 24V / 425-750Ah | 2888 |
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Yale supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
Support throughout the lift truck life cycle
Knowledgeable, reliable dealers make all the difference
When it comes to collaborating with a lift truck dealer, you can’t settle – you need dealers wholly focused on your success. When you purchase equipment or technology solutions from Yale Lift Truck Technologies, you gain access to our independent dealer network. “Independent” means our dealers are not constrained by factory ownership or corporate red tape.
Our dealers are entirely focused on fulfilling your needs
- A seamless experience, from order to factory to ongoing support
- Effective recommendations and responsive support, from parts, maintenance and
emergency services to fleet management, rental trucks and operator training. - Expertise and guidance on special features and allied products and services for your
warehouse, like racking, guarding and safety equipment. - Assistance with financing options.

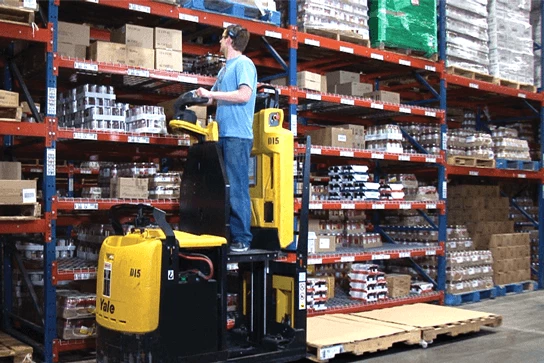

Case study
