For easier, more accurate order picking
Medium and high lift electric order picker
- Models
- FS030BF, OS030BF, OS030EF, SS030BF
- Capacity
- 3000lbs
Productive order picking applications are vital to your success. The Yale warehouse electric order picker series goes the distance, with thoughtfully designed ergonomics, state-of-the-art technology and reliable performance that will help keep orders moving efficiently, shift after shift.
- Operator comfort
- Smart-Glide technology
- Technology driven productivity
- Four model configurations

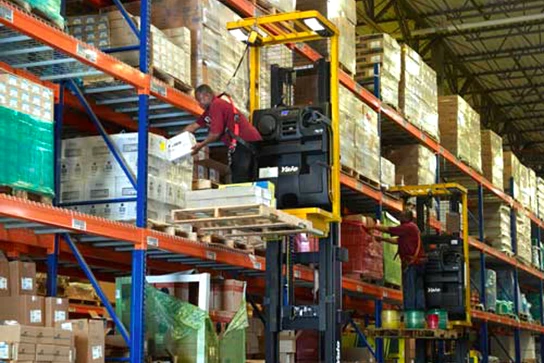

Taking performance to new heights with an electric order picker by Yale
The compartment is your operator’s office, so we designed it for comfort and efficiency. This spacious, ergonomically designed workspace is built to maximize productivity and minimize operator fatigue.
- Low step height, wide cushioned floor and one-inch thick padded rubber floor mat for shift-long comfort
- Foot switch position that promotes a natural stance
Unobstructed visibility through the mast - Multi-function control handle can be rotated to one of three positions for a comfortable operating stance
- Retractable side gates with easy one-hand operation for side protection and quick access
Yale electric order pikers are engineered with state-of-the-art Smart-Glide™ technology.
This technology is a continuous height-sensing system that eliminates the “pogo” effect by providing stepless speed control, optimizing the maximum travel speed at various fork heights. The adjustment in speed is smooth, gradual and barely noticeable to the operator. Smart-Glide leads to faster travel speeds, improved acceleration and increased productivity, while helping maximize stability.
Performance is built into every Yale® lift truck, and the electric order picker series is no exception. State-of-the-art technology enables more efficient and reliable order picking workflows.
- Wire guidance system holds firmly, giving operators the security to focus on the pick task without worrying about steering
- Pallet clamp automatically centers and grips the pallet, with a foot-operated pedal that is easily actuated for quick pallet release
- Smart-Steer™ handle (optional) provides automatic return-to-center when released. The maximum required turn of the handle is 90 degrees from center to provide a full range of truck maneuverability.
- Standard multi-turn steering utilizes a stepper motor to provide increased sensitivity for accurate control and error detection.
Four model configurations to meet your application needs
OS030EF - STANDARD DUTY COUNTERBALANCE
Heights to 240”
24V system
AC drive and DC hoist
Single lift speed control
Maximum travel speed: 6 mph
Maximum lift speed: 40 ft/min
Maximum lower speed: 52 ft/min
OS030BF - HEAVY DUTY COUNTERBALANCE
Heights to 300”
24V system (optional 36V)
AC drive and optional AC hoist
Variable lift speed control
Maximum travel speed: 6.5 mph
Maximum lift speed: 67 ft/min
Maximum lower speed: 80 ft/min

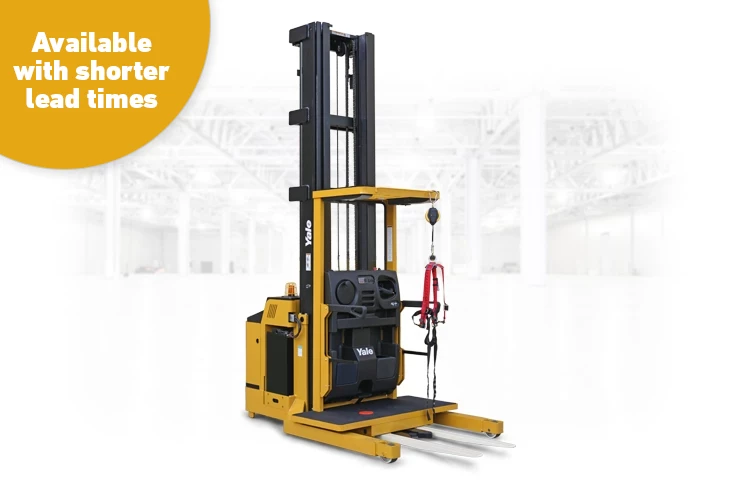

SS030BF - STRADDLES LOADS
Heights to 360”
24V system (optional 36V)
AC drive and optional AC hoist
Variable lift speed control
Maximum travel speed: 6.5 mph
Maximum lift speed: 67 ft/min
Maximum lower speed: 80 ft/min
FS030BF - FURNITURE SELECTOR
Heights to 360”
24V system (optional 36V)
AC drive and DC hoist
Variable lift speed control
Maximum travel speed: 6.5 mph
Maximum lift speed: 67 ft/min
Maximum lower speed: 80 ft/min
| Model | Load Capacity | Lift Height | Battery Capacity Voltage | Weight |
|---|---|---|---|---|
| SS030BF | 3000lbs | 240 | 24V / 595-770Ah | 4266 |
| OS030EF | 3000lbs | 360 | 24V / 775-1000Ah | 5346 |
| OS030BF | 3000lbs | 300 | 24V / 775-1000Ah | 3845 |
| FS030BF | 3000lbs | 360 | 24V / 775-1000Ah | 7050 |
The GSA creates a centralized location for the federal government, offering products, services, and facilities needed for federal agencies to serve the public. As a GSA certified company, Yale supports the GSA’s mission to provide innovative solutions for federal agencies with cost-effective and high-quality products. You can also find more information on the General Services Administration at www.gsaadvantage.gov
Support throughout the lift truck life cycle
Knowledgeable, reliable dealers make all the difference
When it comes to collaborating with a lift truck dealer, you can’t settle – you need dealers wholly focused on your success. When you purchase equipment or technology solutions from Yale Lift Truck Technologies, you gain access to our independent dealer network. “Independent” means our dealers are not constrained by factory ownership or corporate red tape.
Our dealers are entirely focused on fulfilling your needs
- A seamless experience, from order to factory to ongoing support
- Effective recommendations and responsive support, from parts, maintenance and
emergency services to fleet management, rental trucks and operator training. - Expertise and guidance on special features and allied products and services for your
warehouse, like racking, guarding and safety equipment. - Assistance with financing options.
Featured Promotion

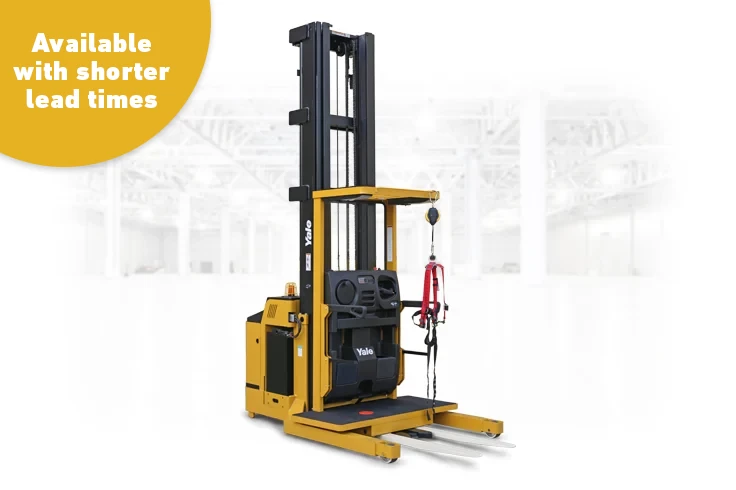

Shorter lead times now available
