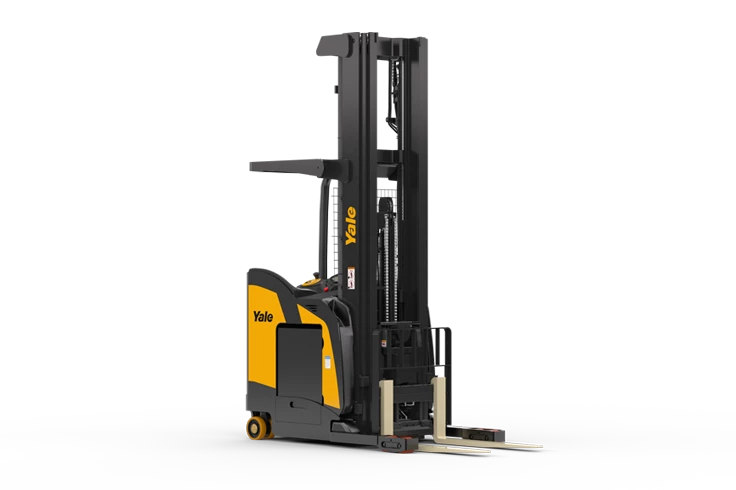

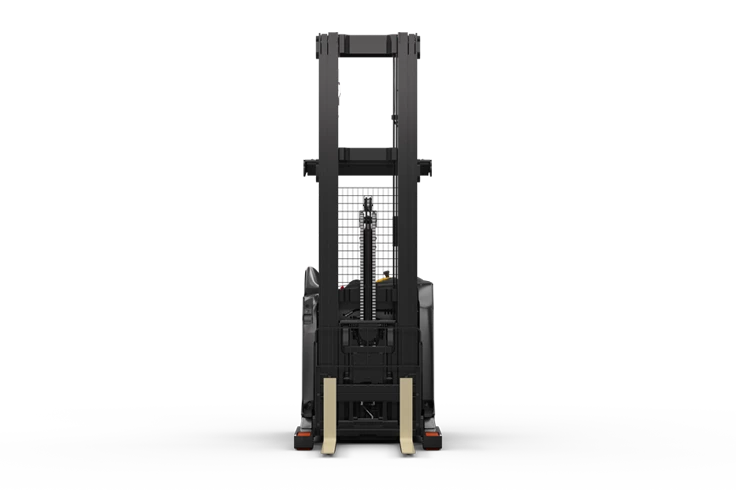

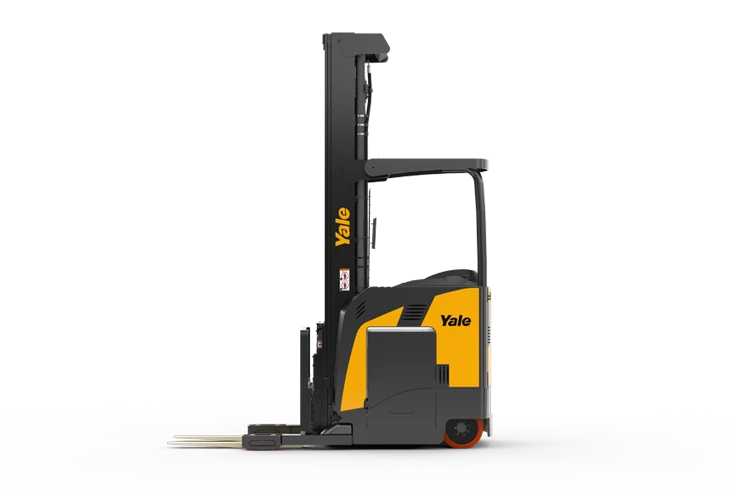

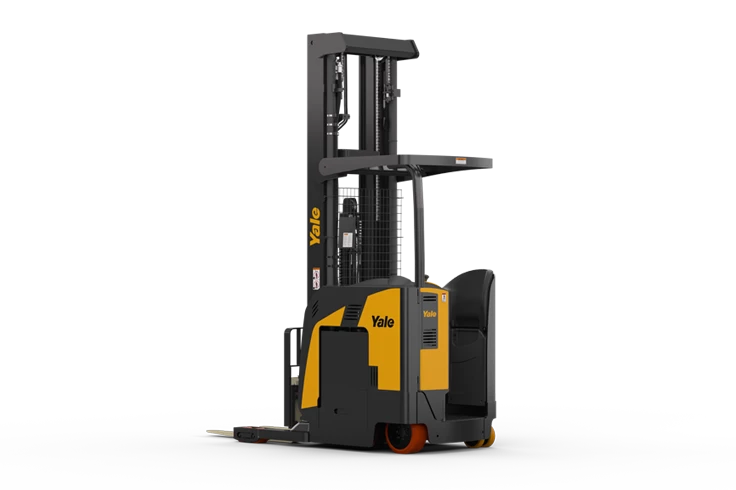

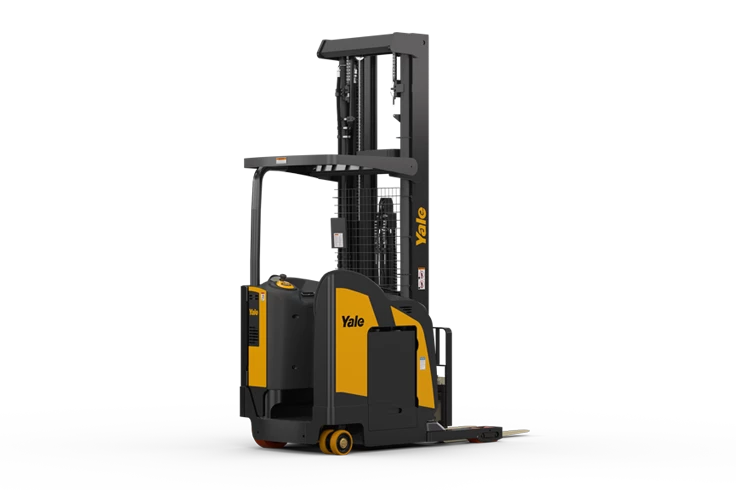

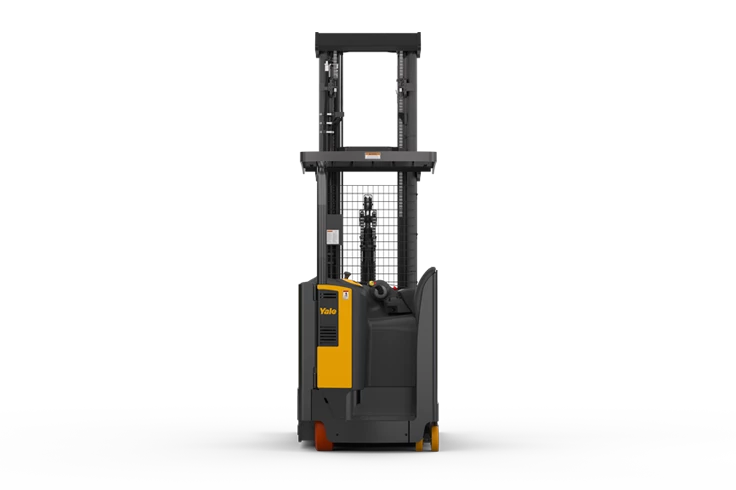

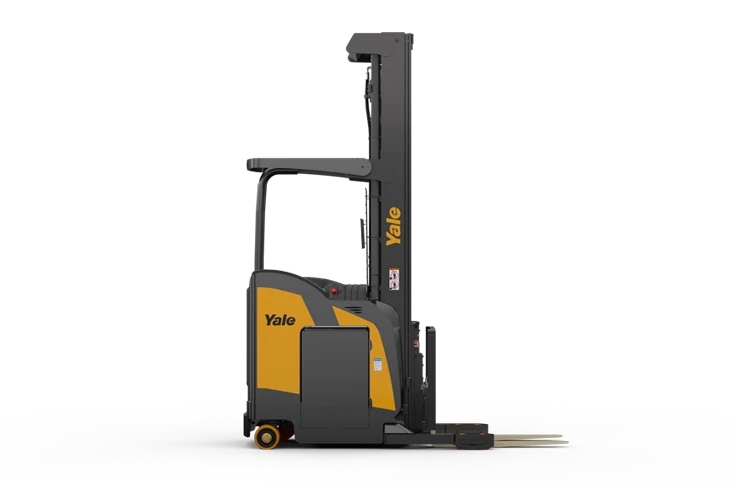

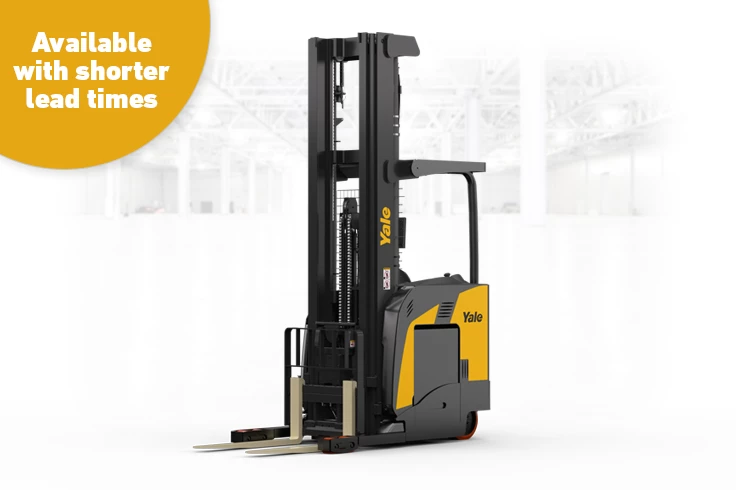

Pantograph reach truck for vertical storage
Narrow aisle reach truck
- Models
- NR045EB, NDR035EB
- Capacity
- 3500-4500lbs
The NR/NDR-EB narrow aisle pantograph reach truck is designed to meet the needs of demanding applications for high density storage. Available in 3,500 lb. deep reach and 4,500 lb. single reach capacities to meet your needs in maximizing vertical storage.
- Reach truck operator comfort
- Reliable performance
- Simplified service
Maximize storage space in narrow aisles
Operator comfort
Reliable performance
Simplified service
Over the course of a shift, operator productivity can drop by as much as 30%. Yale narrow aisle reach trucks are meticulously designed around the operator with features to improve comfort and help reduce fatigue, delivering higher productivity and efficiency all shift long.
- Side-stance control handle provides conveniently located controls and allows simultaneous control of travel and hydraulic functions
- E-Z Ride floor with elastomeric mounts cushions the ride and includes a heated floor option for SubZero conditions
- The reach truck operator compartment features a low step height, wide cushioned floor and a 5/8” thick padded rubber floor mat for supportive comfort
- Standard adjustable armrest, backrest and optional adjustable steer tiller position help operators find their ideal position
From the application proven rugged reach mechanism to their Hi-Vis™ mast, these narrow aisle reach trucks deliver reliable performance.
- Heavy-duty design of the mast minimizes sway and lift cylinders provide integral cushioning for excellent mast channel staging and precise load handling
- When activated, the Auto Deceleration System decelerates the reach truck to a smooth stop when the operator moves the control handle towards neutral
- The proportional reach/retract system provides efficient and precise load handling
Our narrow aisle reach trucks are engineered for simple service – reducing the amount of maintenance required and making service easier when necessary, helping reduce dependence on limited, skilled labor.
- The swing-out compartment doors allows easier access to the traction and hydraulic motors
- Mast wear plugs allow for mast adjustments in just 15 minutes - no shims, gauges or disassembly required
- Stationary drive motor eliminates power cable flexing during steering, improving cable reliability
| Model | Load Capacity | Lift Height | Battery Capacity Voltage | Weight |
|---|---|---|---|---|
| NDR035EC | 3500lbs | 422 | 36V / 930-1240Ah | 5650 |
| NR045EC | 4500lbs | 422 | 36V / 930-1240Ah | 5400 |
